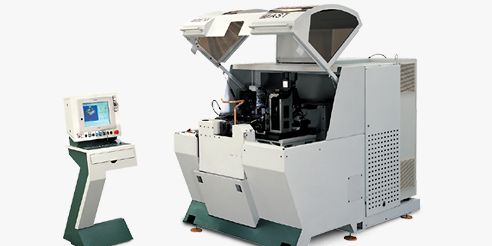

Tube-Form ELE is a
fully electric CNC range of machine for
combined tube end operations on tube O.D. 50mm max. All machine movements are electrically programmed and driven (including power control and modulation of the ram tool) assuring tight accuracy and absolute consistency.
TUBE-FORM adding quality:
INTEGRATED END-FORMING, MILLING AND REMOVAL IN JUST ONE PROCESS
All machining related to endforming, milling and removal are
integrated in one process, for the highest degree of accuracy and repeatability
HIGHEST DIAMETER/END-FORMING RATIO

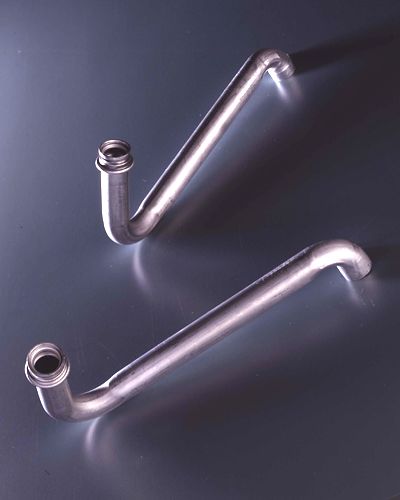

Due to a special clamping system all machining is made on the tube bend without
straight part
MACHINING TUBE ENDS WITHOUT STRAIGHT PARTS
Tube component for aluminium boilers with diameter 20, thickness 1.5 mm produced in one cycle with a fully electric end-forming machine BLM Tubeform.
Modular design of Tube-Form ELE allows to organise the most suitable process flow according to the required tool and final job.
Main features:
- Up to 6 ram stations
- Full combination of ram and rotary tool operations

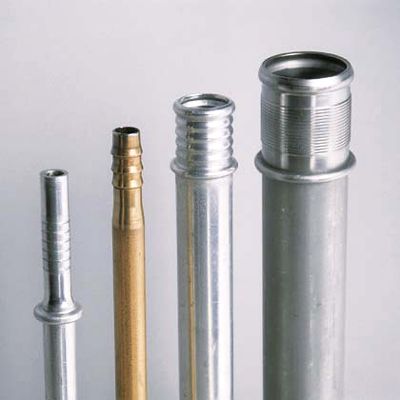

- Available machining & forming operations: deburring - beading - expanding - facing - threading - rolling - friction welding - machining - cutting - milling
All operations are fully CNC programmable (up to 8 controlled axis). This avoids manual operations with substantial savings in cycle times and loading and unloading operations with increased benefits in quality and work repetition.
